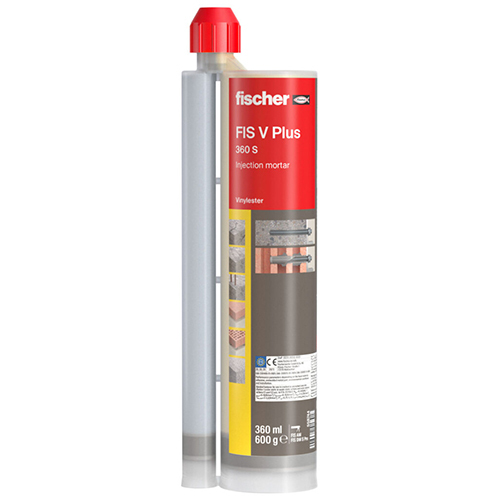

FIS V Plus 360 S Injection Motar

Get a Price/Quote

Product Details:

Physical Form Viscous Paste
Storage Store in cool, dry place, protected from sunlight
Grade Industrial Grade
Density 1.80 Gram per cubic centimeter(g/cm3)
Melting Point Not determined
Appearance Paste
Usage Structural fixing, Construction, Civil Engineering
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

FIS V Plus 360 S Injection Motar Price And Quantity

Minimum Order Quantity 10 Piece

Curing Time 45-120 minutes (depending on temperature)
Installation Conditions Dry, Wet, and Water-Filled Holes
Volume 360 ml cartridge
Packaging 360 ml two-component cartridge with static mixer
Tensile Strength > 20 N/mm2
VOC Content Low
Approval / Certification ETA approval, Seismic C1/C2, Fire rating up to R120
Temperature Resistance -40C to +72C (after cure)
Compressive Strength > 60 N/mm2
Mixing Ratio Automatic, static mixer supplied with cartridge
Hazardous Ingredients None under normal use
Substrate Concrete, Solid brick, Hollow block

FIS V Plus 360 S Injection Motar Product Specifications

Purity(%) > 98%
EINECS No Not Available (Mixture)
Physical Form Viscous Paste
Storage Store in cool, dry place, protected from sunlight
Type Injection Mortar
Melting Point Not determined
Density 1.80 Gram per cubic centimeter(g/cm3)
Grade Industrial Grade
Usage Structural fixing, Construction, Civil Engineering
Appearance Paste
CAS No Not Applicable (Mixture)
Color Grey
Chemical Name Hybrid mortar based on polyester and vinyl ester resins
Classification Chemical Anchor / Injection Mortar
Taste Odorless
Shape Cylindrical Cartridge
Smell Low odor
Application For anchoring threaded rods and rebars in concrete and masonry
Boiling point Not determined
Shelf Life 12 months (unopened)
Ph Level Not determined
Poisonous Non-poisonous
Molecular Weight Not Applicable (Mixture)
HS Code 3214.10.00
Other Names FIS V Plus 360 S, Injection Resin
Molecular Formula Mixture (Proprietary blend)

Curing Time 45-120 minutes (depending on temperature)
Installation Conditions Dry, Wet, and Water-Filled Holes
Volume 360 ml cartridge
Packaging 360 ml two-component cartridge with static mixer
Tensile Strength > 20 N/mm2
VOC Content Low
Approval / Certification ETA approval, Seismic C1/C2, Fire rating up to R120
Temperature Resistance -40C to +72C (after cure)
Compressive Strength > 60 N/mm2
Mixing Ratio Automatic, static mixer supplied with cartridge
Hazardous Ingredients None under normal use
Substrate Concrete, Solid brick, Hollow block

FIS V Plus 360 S Injection Motar Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Utilise the offer to access FIS V Plus 360 S Injection Mortar-a world-class solution for structural fixing in concrete and masonry. This incomparable injection resin is formulated as a hybrid mortar, combining polyester and vinyl ester for impeccable strength and reliability. With seamless installation in dry, wet, or water-filled holes, it delivers curing times of 45-120 minutes and superior temperature resistance from -40C to +72C. ETA approved, with fire rating up to R120 and seismic C1/C2 certification, its low VOC, non-poisonous composition ensures safety, quality, and exceptional results-ideal for civil engineering, construction, and industrial applications.

Innovative Application & Superior Usage Versatility

The FIS V Plus 360 S Injection Mortar is supplied in a 360 ml cylindrical cartridge, complete with a static mixer for automatic, hassle-free mixing. Suited for anchoring threaded rods and rebars, this hybrid chemical anchor adapts impeccably to diverse substrates-concrete, solid brick, and hollow block. Its adaptability across dry, wet, and water-filled hole installations makes it indispensable for both civil engineering projects and structural construction, ensuring reinforced longevity and unmatched reliability. Extra features include low odor and an odorless paste formulation.

Certifications, Market Reach & Sample Policies

Holding ETA approval, seismic certifications (C1/C2), and a premium fire rating up to R120, the FIS V Plus 360 S sets incomparable standards. Designed for the Indian export market as well as domestic customers, it offers a list price that reflects its value in industrial and structural applications. Exporters and suppliers can access samples per applicable policy, further reinforcing this product's role in premium construction solutions nation-wide and internationally.

FAQ's of FIS V Plus 360 S Injection Motar:

Q: How does the FIS V Plus 360 S Injection Mortar benefit structural fixing and anchoring?

A: The FIS V Plus 360 S provides a secure and durable anchoring solution for threaded rods and rebars, offering high compressive and tensile strength. Its high-performance formula ensures unmatched fixation, even in challenging environments like dry, wet, or water-filled holes.

Q: What types of substrates are compatible with the FIS V Plus 360 S Injection Mortar?

A: This injection mortar is suitable for use with concrete, solid brick, and hollow block substrates, making it versatile for a variety of structural applications in construction and civil engineering.

Q: When should the FIS V Plus 360 S be used during project workflows?

A: FIS V Plus 360 S should be employed during the anchoring phase, particularly when robust, certified, and fire- or seismic-rated chemical anchoring is necessary in structural or civil engineering projects.

Q: Where is the FIS V Plus 360 S Injection Mortar primarily marketed and exported?

A: The product is supplied and exported throughout India's premium domestic market and is available for international export, serving major construction and industrial clients.

Q: What is the application process for this injection mortar?

A: The mortar is delivered in a two-component cartridge with a static mixer. Simply attach the mixer to the cartridge, apply via a dispensing tool, and inject into prepared holes. Automatic mixing ensures the correct ratio every time.

Q: How long is the curing time and what conditions affect it?

A: Curing time ranges from 45 to 120 minutes, largely dependent on ambient temperature. Cooler environments extend cure times, while warmer settings expedite the process.

Other Products in 'Fischer Product' category

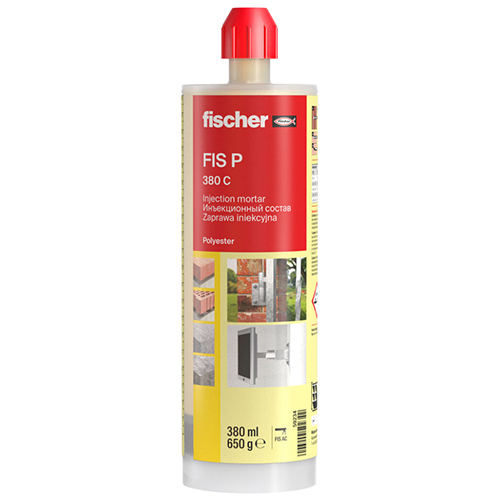

FIS P 380 C Injection Motar Minimum Order Quantity : 10 Classification : Other, Twocomponent chemical Anchoring System Physical Form : Other, Paste Storage : Other, Store in cool, dry place away from direct sunlight Shape : other, Cartridge form Smell : Other, Slight characteristic odor Application : Other , Bonding and anchoring in concrete and masonry Type : Epoxy Acrylate Injection Mortar Grade : Industrial Grade Appearance : Thick Paste Usage : Used for fixings of rebars, threaded rods, bolts, and special fastening systems HS Code : 35069900 Color : Grey Other Names : Fischer Injection Mortar Poisonous : Other, Nonpoisonous under normal conditions Shelf Life : 12 months (unopened, standard conditions) Density : 1.73 Gram per cubic centimeter(g/cm3)
